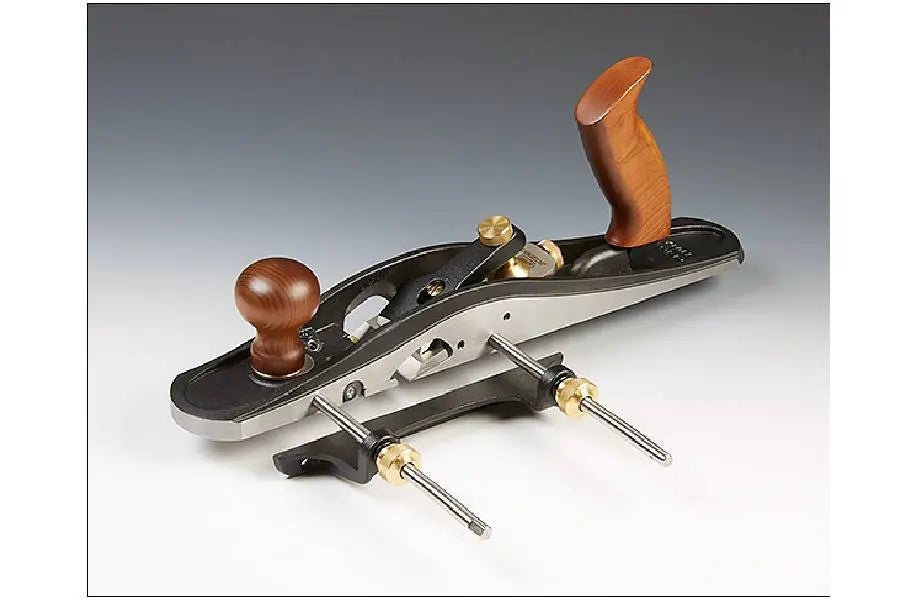

Veritas Low Angle Rebate Rafter

Total Length 380mm
Blade width 57mm
Blade thickness 4.7mm
Blade tilt 15°, sharpening angle 25°

The 4.7mm thick, upward-beveled blade is as wide as the plane body (57mm), providing clean, precise cuts in the corners of rabbets, both left and right. The 15° blade angle, combined with its 25° bevel, gives an effective cutting angle of 40°. Additionally, a grain scorer is located at the front of the blade, on either side of the jack. This reduces fiber tear-out when working against the grain.

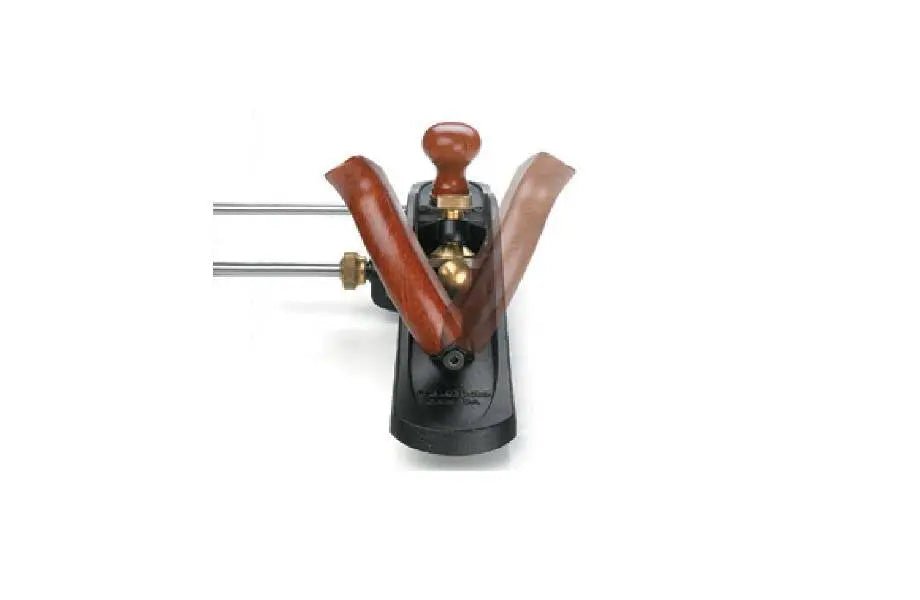

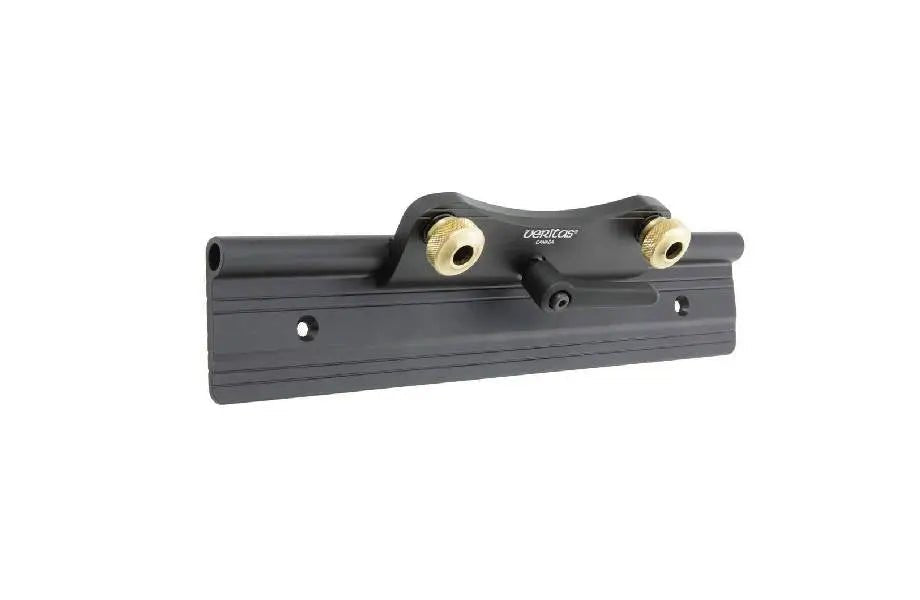

The cutting depth and the projection of the scoring blades are adjustable. Furthermore, the scoring blades are fully recessed into the body of the rasp to work with the grain or to prevent accidentally notching the workpiece. The removable 190mm long guide attaches to the rasp using two steel rods with brass locking knobs. The distance between the guide and the shoulder of the rabbet can be up to 130mm. It also has holes for attaching an auxiliary wooden guide. The rasp handle tilts and locks on either side of the tool to clear joints.

Creating clean rebates
Precise adjustment after machine machining
Working with difficult wood
Visible finish without excessive sanding

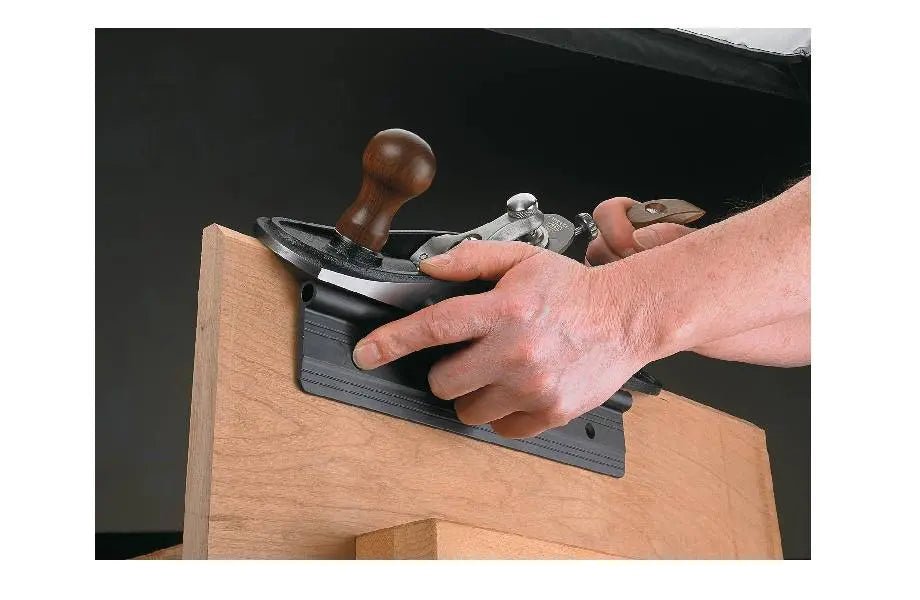

The Veritas low angle rebate tool is a precision machining tool, designed to create or adjust clean rebates, without tear-out, even in demanding woods.

Its bevel-up design allows for a smoother and more controlled cut, particularly useful on:

hardwoods,
wavy wood,
Visible rebates requiring a clean finish.

The PM-V11 blade, developed by Veritas, ensures:
remarkable thread stability
less sharpening,
ideal cutting regularity for repetitive tasks.

Because the blade is flush across its entire width, the plane can work right up to the edge, making it indispensable for:

door rebates and panels,
frame fitting,
Precise rework after sawing or routing.

It is a production and finishing tool, not just a simple finishing plane.
