Trusquin Véritas micrométrique règle non graduée - Gaignard Millon

Veritas

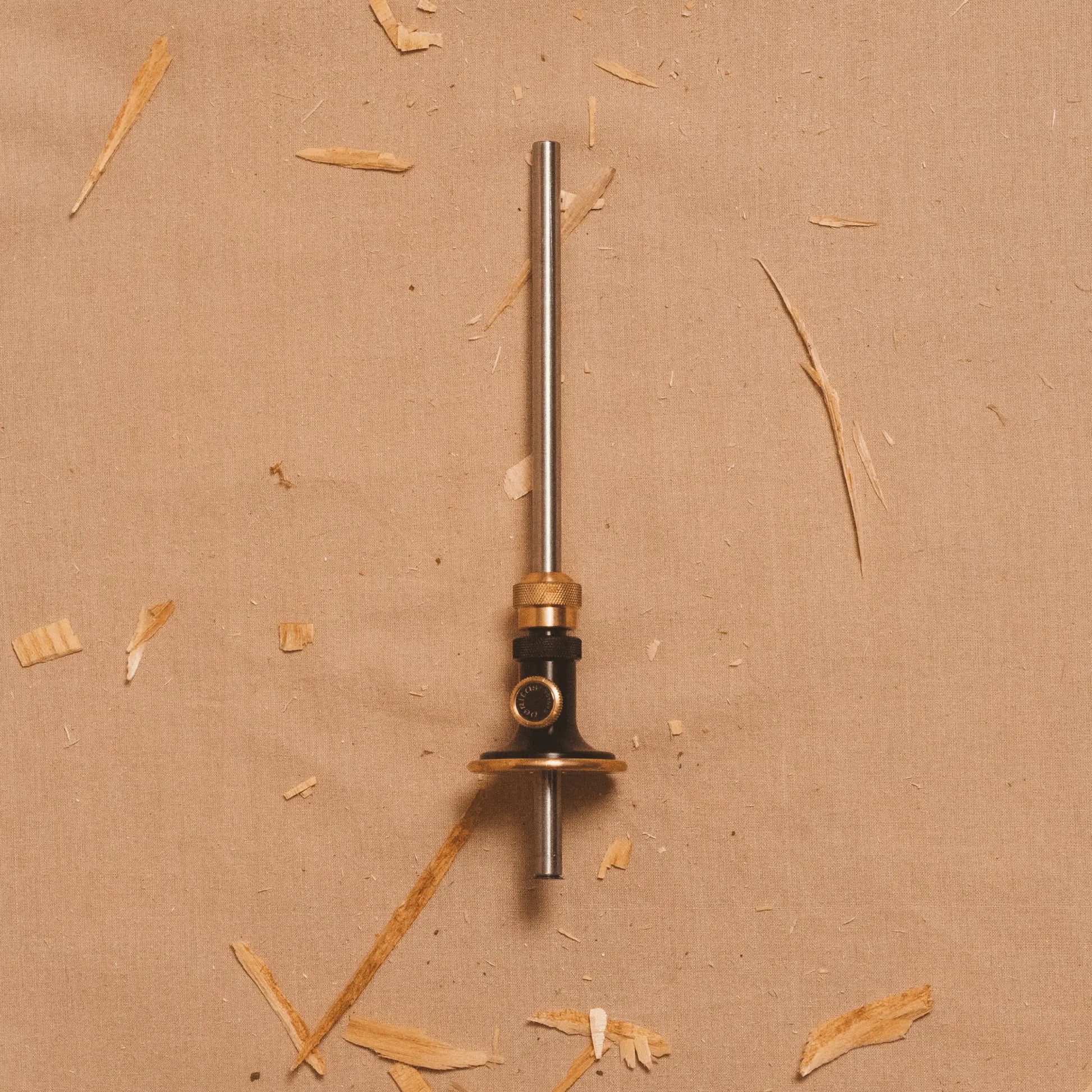

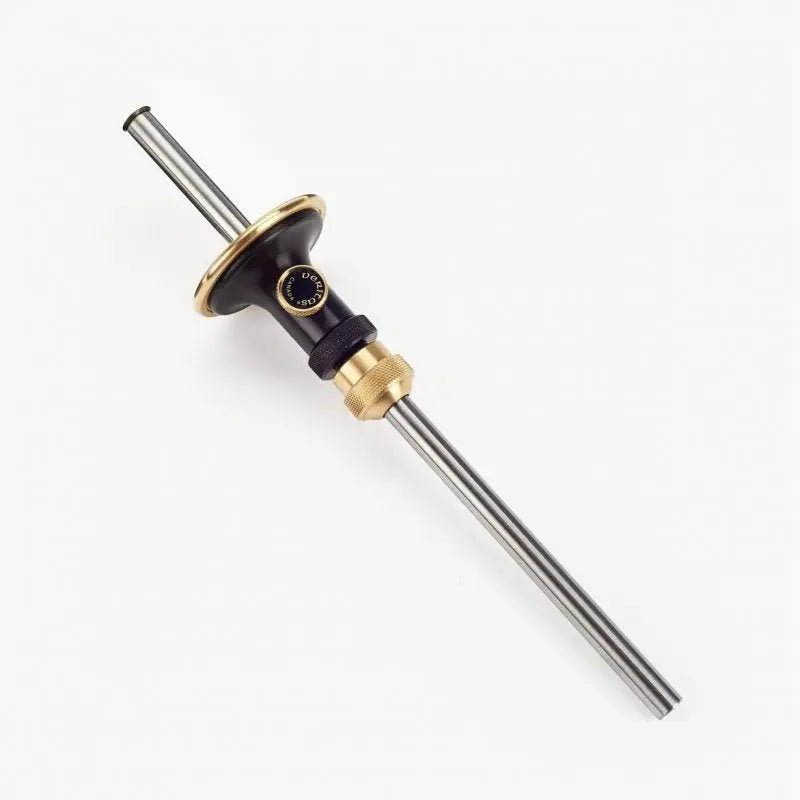

Trusquin Veritas micrometric ungraduated ruler

Name: Trusquin Veritas micrometric ungraduated ruler
Brand: Véritas
SKU: 05N3510
Price: 40,00 EUR
Availability: InStock

40,00€

Tax included. Shipping calculated at checkout.

With its hardened steel cutting wheel and micrometric adjustment, this marking gauge allows for very precise markings on wood without visible excess thickness.

Hardened steel wheel that cuts the wood fibers rather than tearing them out, allowing for clean lines even across the grain.
Anodized aluminum body + brass face + stainless steel stem, with an internal O-ring to exert light but constant friction on the stem.
Two-stage collar mechanism for micro-adjustment: one turn of the collar moves the wheel forward or backward by 0.8 mm, half a turn 0.4 mm, a quarter turn 0.2 mm.

Ref. 05N3510

Technical specifications

Single-edge wheel (bevel on one side only) improving contact and drawing accuracy.

Retractable wheel in the face of the tool for protection during storage.

Made in Canada.

Replacement caster wheel: 05N3511

The body is longer than the standard model to allow for micrometric adjustment.

Usage & Maintenance

Accurately mark the shoulder of a tenon or the depth of a mortise using the end of the rod placed flush with the wheel.

Drawing reference lines on wood for assembly, fine joinery, cabinetmaking where a fine fit is crucial.

Transferring dimensions from one part to another without visible metric links, as this model is ungraduated.
