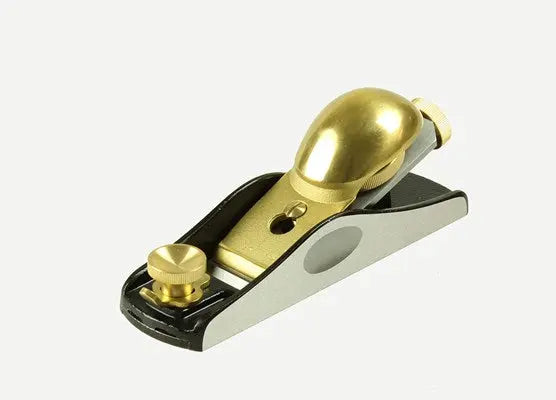

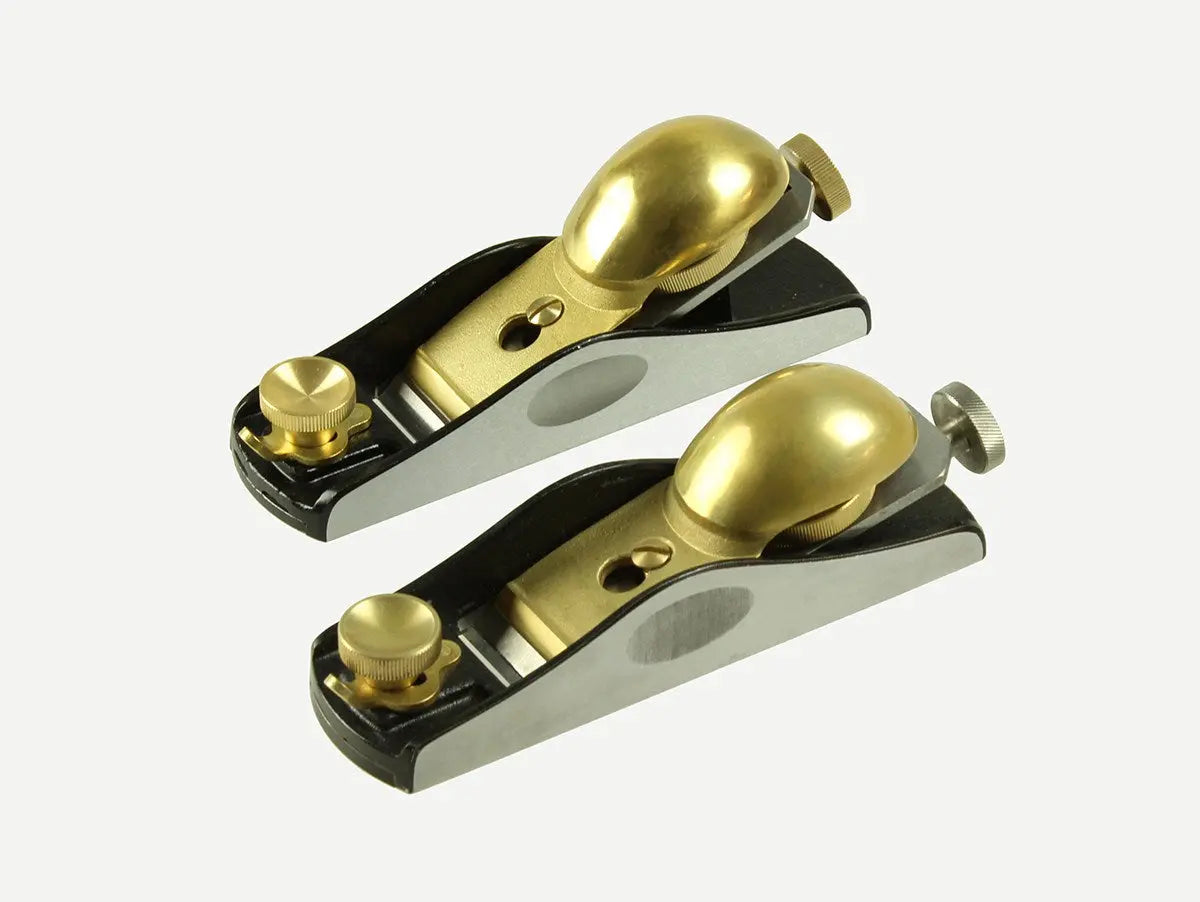

Luban compact plane – Angle 12° or 20°

Sharpening angle: 12° or 20° depending on the variant chosen

Common characteristics:
Total length: 160 mm
Blade width: 35 mm
Blade thickness: 3 mm in SK4 (61 RC) steel
Weight: 840 g
Body: Stabilized cast iron
Clamping cover: bronze
Sole: Rectified & polished
Light opening: Adjustable

Use of 12°: End grain wood / difficult fibers
Use of the 20° blade: General planing

Planing localized areas without using a large plane.
Precise finishing, corrections before gluing or assembly.
End grain and cross grain — prefer the 12° variant.
Standard planing on solid wood — prefer the 20° variant.

Luban compact planes are hand tools designed for finishing, fitting, and touch-up work in the workshop. Thanks to their small size (160 mm long), they offer excellent maneuverability while ensuring a smooth, vibration-free cut.

Compact plane – 12° angle
Designed for a smooth cut, this model is particularly effective for end-grain planing, cross-grain work, and planing with swirling fibers. The very shallow angle facilitates blade entry into the material while minimizing splintering and effort.

Compact plane – 20° angle
The 20° version offers a standard cutting angle, suitable for most common woodworking tasks. It represents a classic compromise between cutting penetration, edge durability, and versatility.

Both variants share a solid construction: stabilized cast iron body, perfectly ground and polished sole for smooth gliding, and 3 mm thick high-hardness (61 HRC) SK4 steel blades for a clean and precise cut.
