Luban

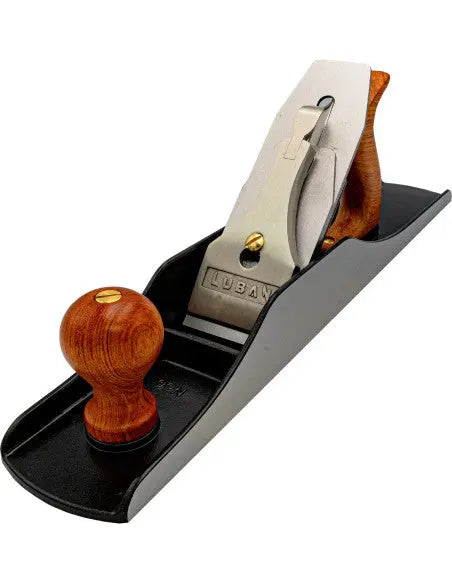

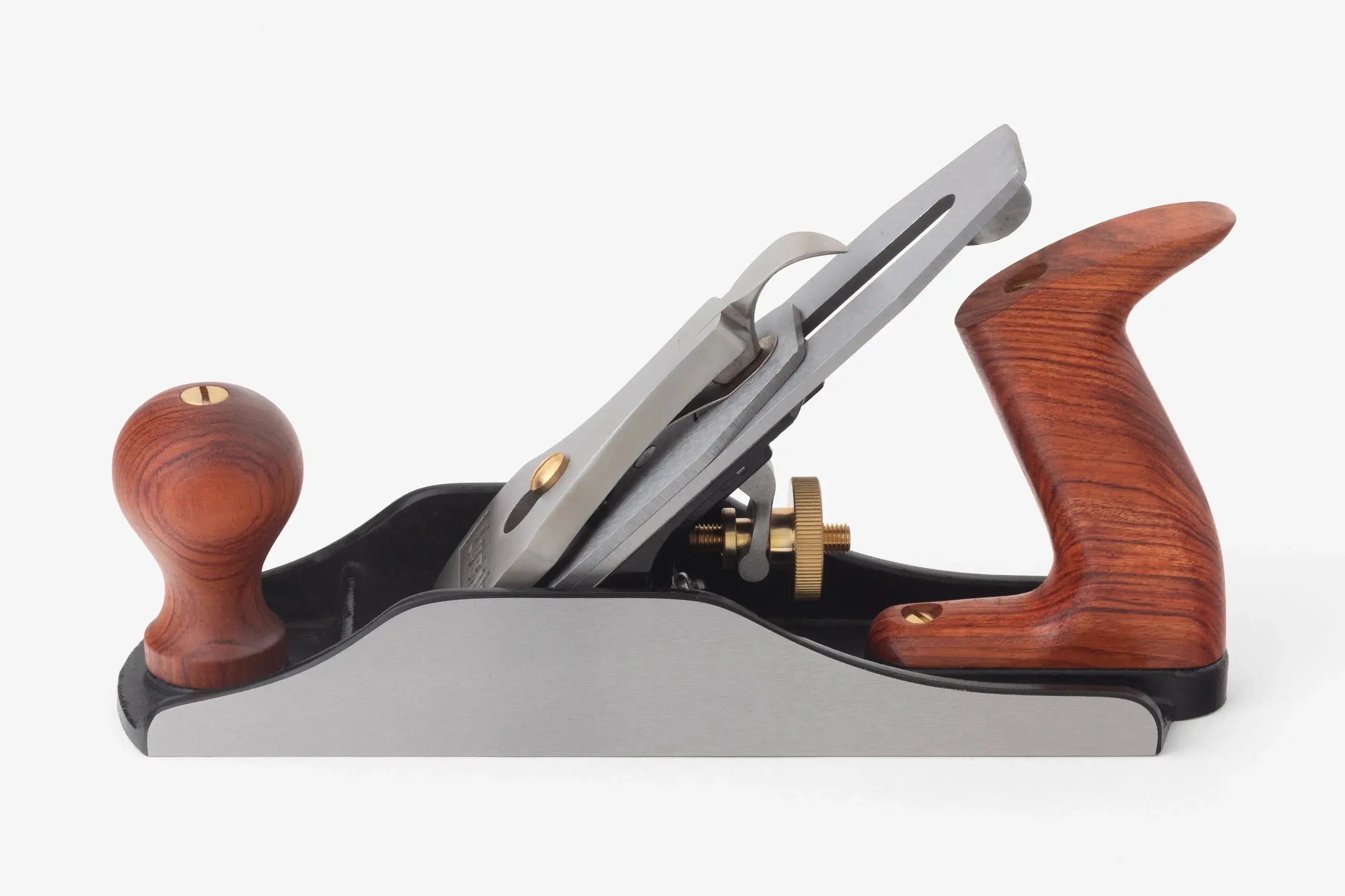

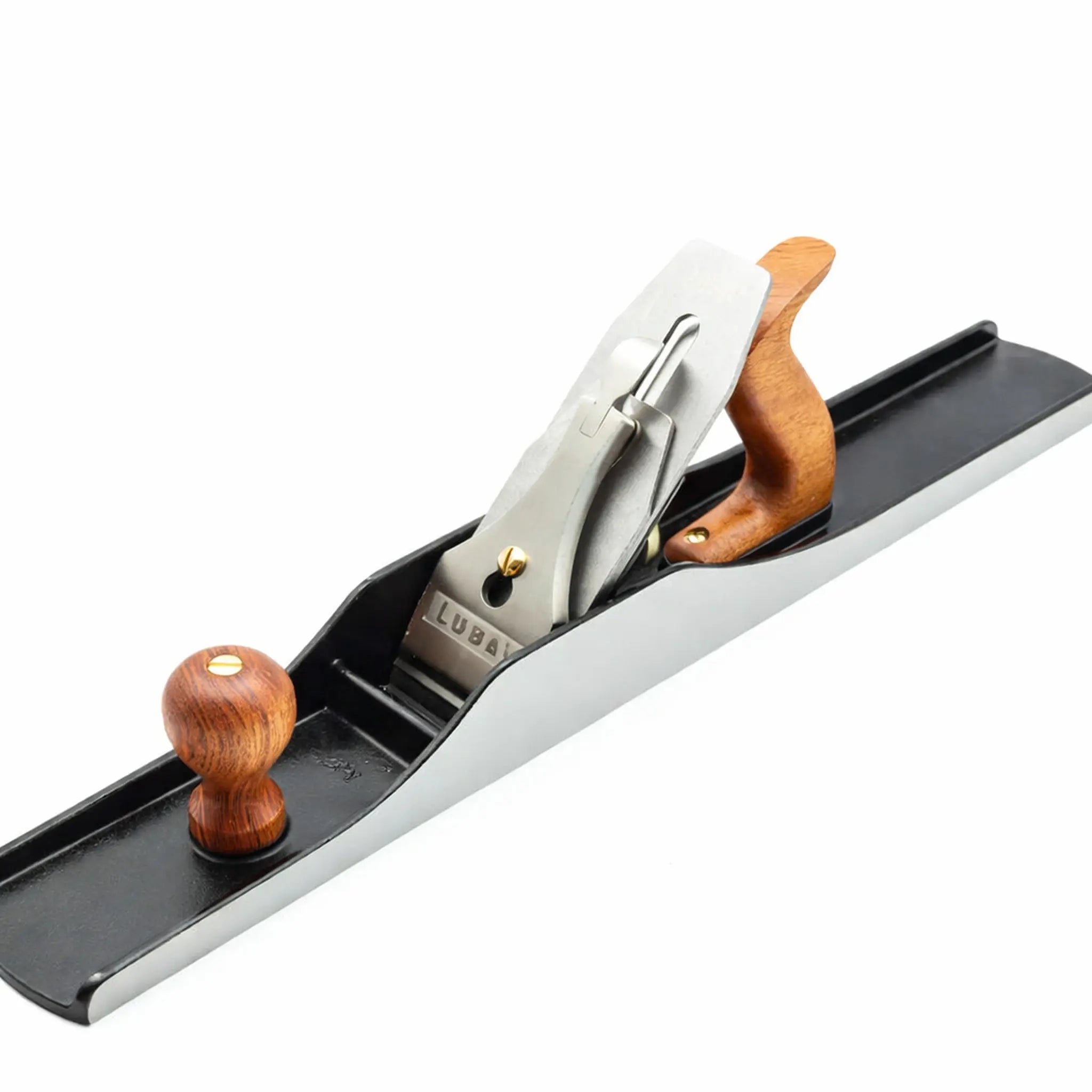

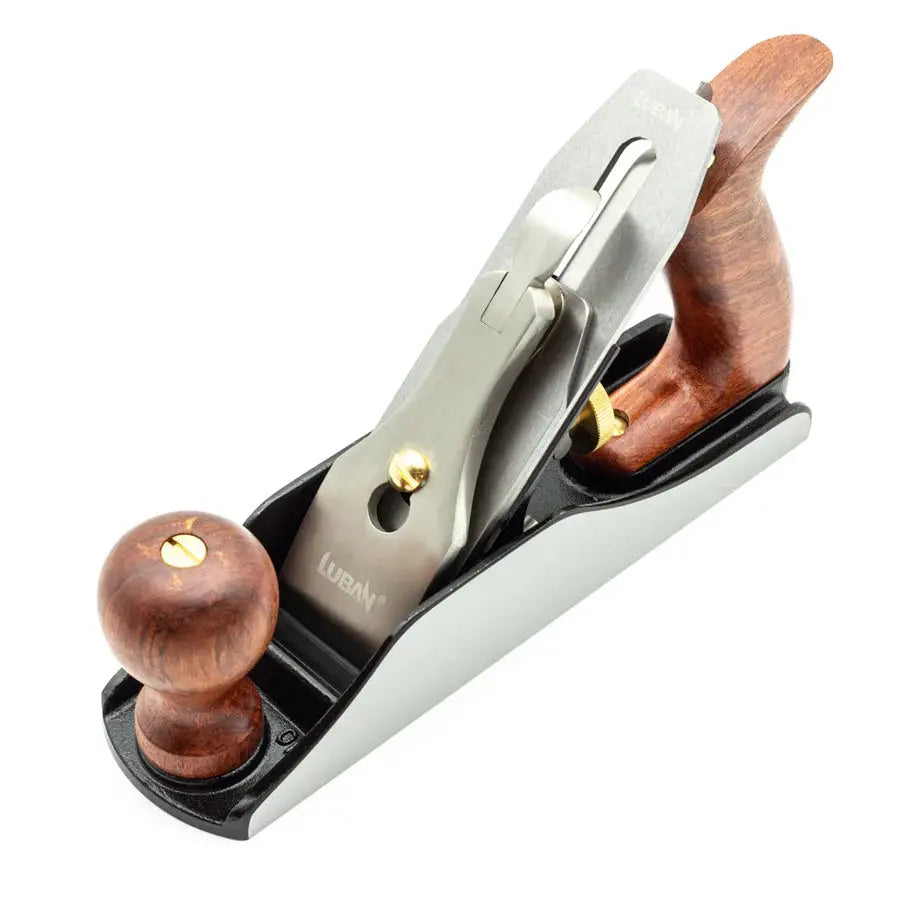

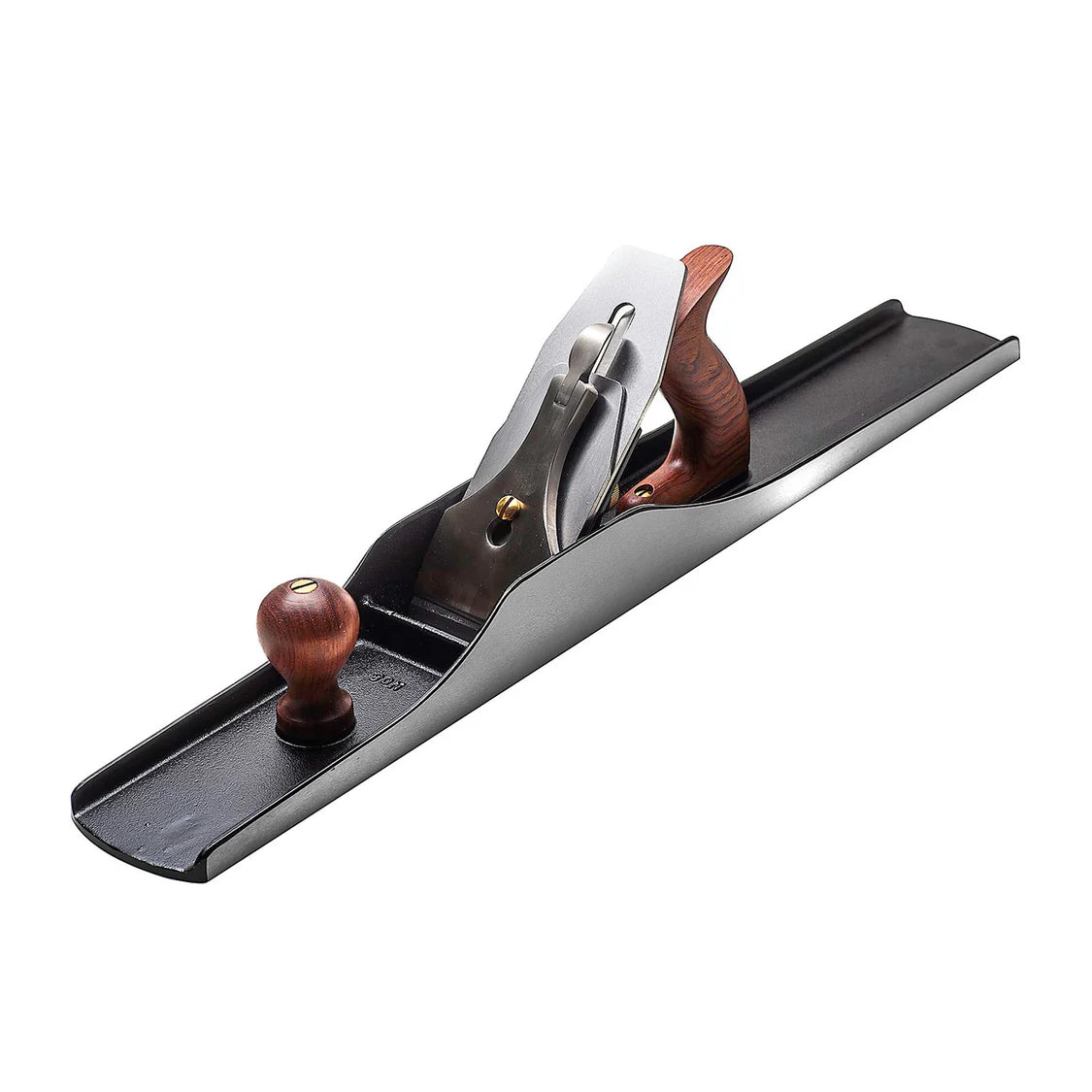

Luban bench plane

€134,40€

Tax included. Shipping calculated at checkout.

A complete range of Luban bench planes , high quality, versatile and highly efficient, designed for fine roughing, dressing and flattening of parts , combining efficiency, stability and precision of adjustment.

Design Bedrock : perfect blade support and maximum rigidity
Body made of ground and finely polished cast iron for an even more precise result
All handles are made from a fine-grained hard exotic wood, providing a pleasant grip.

Ref. QS03-033

Model: No. 3

No. 3 No. 4 No. 5 No. 6 No. 7 No. 5 (low angle)

Technical specifications

Blade material: SK4
Blade hardness: RC 60–63
Iron thickness: 3 mm (to be verified for the 3)
Stop block or lever cap: Stainless steel
Widths of the iron:
No. 3: 44mm
Nos. 4 and 5: 50 mm
Nos. 6 and 7: 60mm
Handle material: exotic natural wood
Blade cutting edge angle: 25°
Cutting angle (blade relative to the sole): 45°

Plane No. 3
Dimensions: 235 x 56 mm
Weight: 2.2 kg

Plane No. 4
Dimensions: 251 x 62 mm
Weight: 2.3 kg

Plane No. 5
Weight: 2.6 kg
Dimensions: 345 × 60 × 135 mm

Plane No. 6

Plane No. 7

Usage & Maintenance

Bench planes, each with its own function (see description)

Additional information

Plane #3: the smallest in our range, designed for planing small pieces of wood

Plane #4 more commonly called a rasp; this model is the best-selling in the range because it is the most universal and versatile.

#5 plane or half-plane: its medium-sized sole allows for precise and rapid planing of medium-sized wood panels.

Low angle #5 plane: very versatile, designed to offer a fine, regular and vibration-free cut — even on end grain or difficult woods — thanks to its 12° angled blade.

Plane #6: A good length plane equipped with a wide blade (60mm) designed for planing medium and large surfaces

Plane #7 also called a jointer plane: the largest in the range for straightening and planing large panels.
